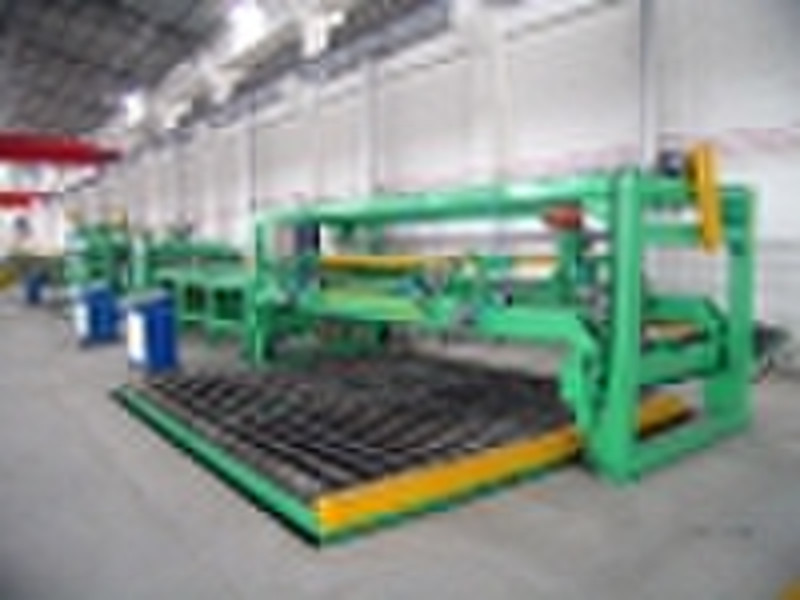

Levelling line

a) Raw Material: Stainless steel, galvanized steel, carbon steel b) Raw Material Thickness 0.3mm1.0mm c) Raw Material Width 500 1500mm d) Outer mother roll diameter 800mm 1600mm(max) e) Inner mother roll diameter Φ460mmΦ520mm f) Maximum loading weight 8.0tonsMAX g) Cutting accuracy i. Length accuracy ≤±0.5mmbased on 1000mm ii. Diagonal accuracy: ≤±0.6mmbased on 1000mm iii. levelling accuracy: ≤+/-2.0mm/m² h) Working speed: (thickness <1.0mm) 40pcx/min (length less than 500mm) 35pcx/min (length less than 800mm) 30pcx/min (length less than 1000mm) 25pcx/min (length less than 1500mm) 17pcx/min (length less than 2500mm) i) Stacking Length: 500 3000mm j) Stacking height: 500mm k) Working speed: 0 40m/min l) Direction of line: facing operation table from ______ to ______
