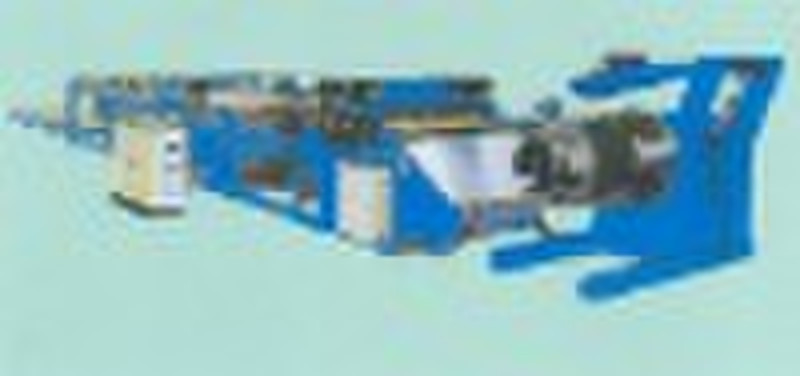

Cut To Length Line

The main parameters of this cut to length line: TECHNICAL PARAMETER 1. SPECIFICATION: Materials of Coiled Plate Stainless steel Thickness of Coiled Plate 0.4-2.0 mm Width of Coiled Plate 400mm-1500 mm Coil Inner Diameter ø 460- ø 520 mm Coil Outer Diameter ø 1400mm Max. Weight of Coiled Plate 5T 2. TECHNICAL PARAMETER: Straightening Speed 0 – 25 m/min Accuracy of Cutting Length ±0.5mm Diagonal Tolerance ±1.0mm Length Of Material Stacking 3000mm Min. Cutting Length 400mm Max. Cutting Length 3000mm Total Power Of Motor 35KW Total Weight 20T Area needed 14.2m*5.5m ( L*W)3. EQUIPMENTS: Hydraulic Decoiler 1 set Measuring Machine 1 set Leveling Machine 1 set Feeding Device 1 set Double Column Hydraulic Cut-Off Device 1 set Conveying Belt 1 set Frame Stacker 1 set Hydraulic System 1 setElectric System 1 set
